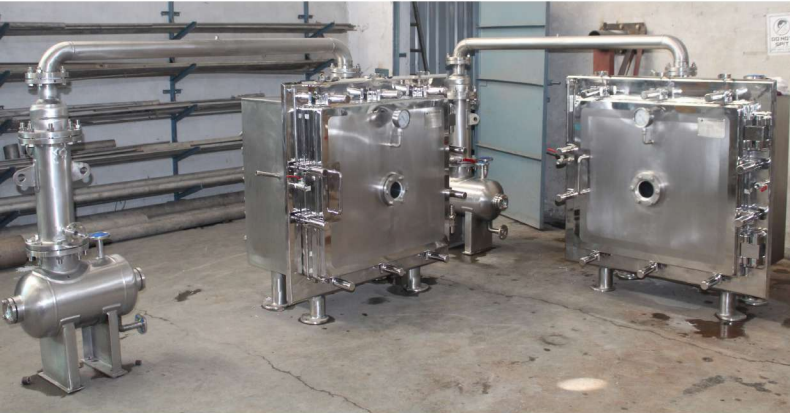

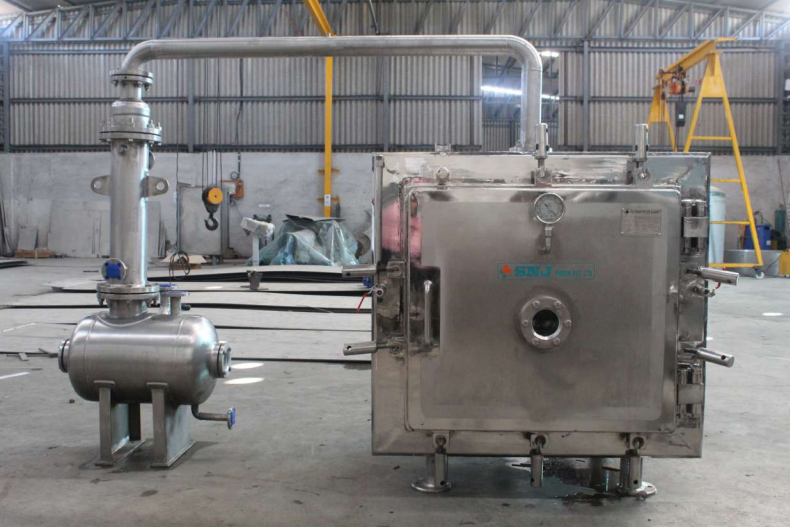

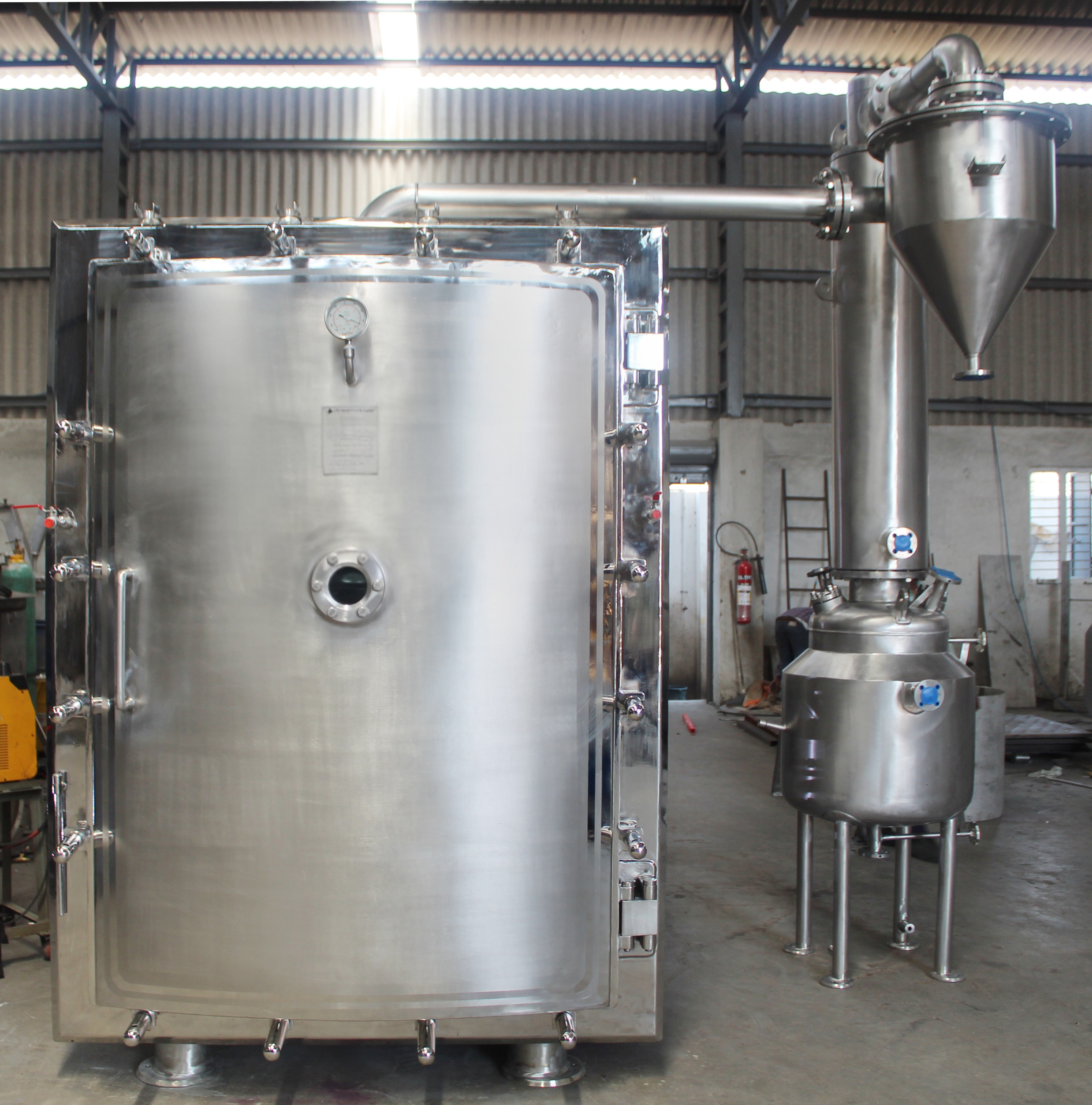

PMECH ENGITECH designs and manufactures high-quality Vacuum Tray Dryers (VTDs), ideal for the drying of heat-sensitive materials that are prone to decomposition, polymerization, or deterioration under elevated temperatures.These dryers are widely used in the pharmaceutical, chemical, food, and herbal industries for precise and contamination-free drying of products under vacuum conditions.
| Vacuum Tray Dryer Specification | |||||||
|---|---|---|---|---|---|---|---|
| Model No. | VTD - 6 | VTD - 12 | VTD - 24 | VTD - 36 | VTD - 48 | VTD - 72 | VTD - 96 |
| No. Of Trays | 6 | 12 | 24 | 36 | 48 | 72 | 96 |
| Tray Volume in Ltr. | 60 | 120 | 240 | 360 | 480 | 720 | 960 |
| Tray Size L x W x H in mm | 800 × 400 × 32 | ||||||
| No. of heating shelf’s | 6+1 Dummy | 6+1 Dummy | 12+1 Dummy | 12+1 Dummy | 16+1 Dummy | 12+1 Dummy | 16+1 Dummy |
| Shelf’s size in mm | 435 × 835 | 835 × 835 | 835 × 1250 | 1650 × 1250 | |||
| Distance between shelf’s in mm | 100 | ||||||
| Tray on each shelf | 1 | 2 | 2 | 3 | 3 | 6 | 6 |
| Condenser | 0.6 M2 | 1.0 M2 | 1.5 M2 | 2 M2 | 3 M2 | 5 M2 | 7.5 M2 |
| Receiver | 25 ltrs | 50 ltrs | 50 ltrs | 100 ltrs | 200 ltrs | 250 ltrs | 300 ltrs |
| Hot water line | 25 NB | 40 NB | |||||
| Width in mm | 910 | 1000 | 1000 | 1750 | |||
| Depth in mm | 550 | 850 | 930 | 1350 | |||
| Height in mm | 850 | 1400 | 1800 | 1400 | 1800 | ||
PMECH ENGITECH PVT. LTD. is an ISO 9001: 2008 company established by a team of skilled and passionate technocrats with over 10 years of experience in the industry.
