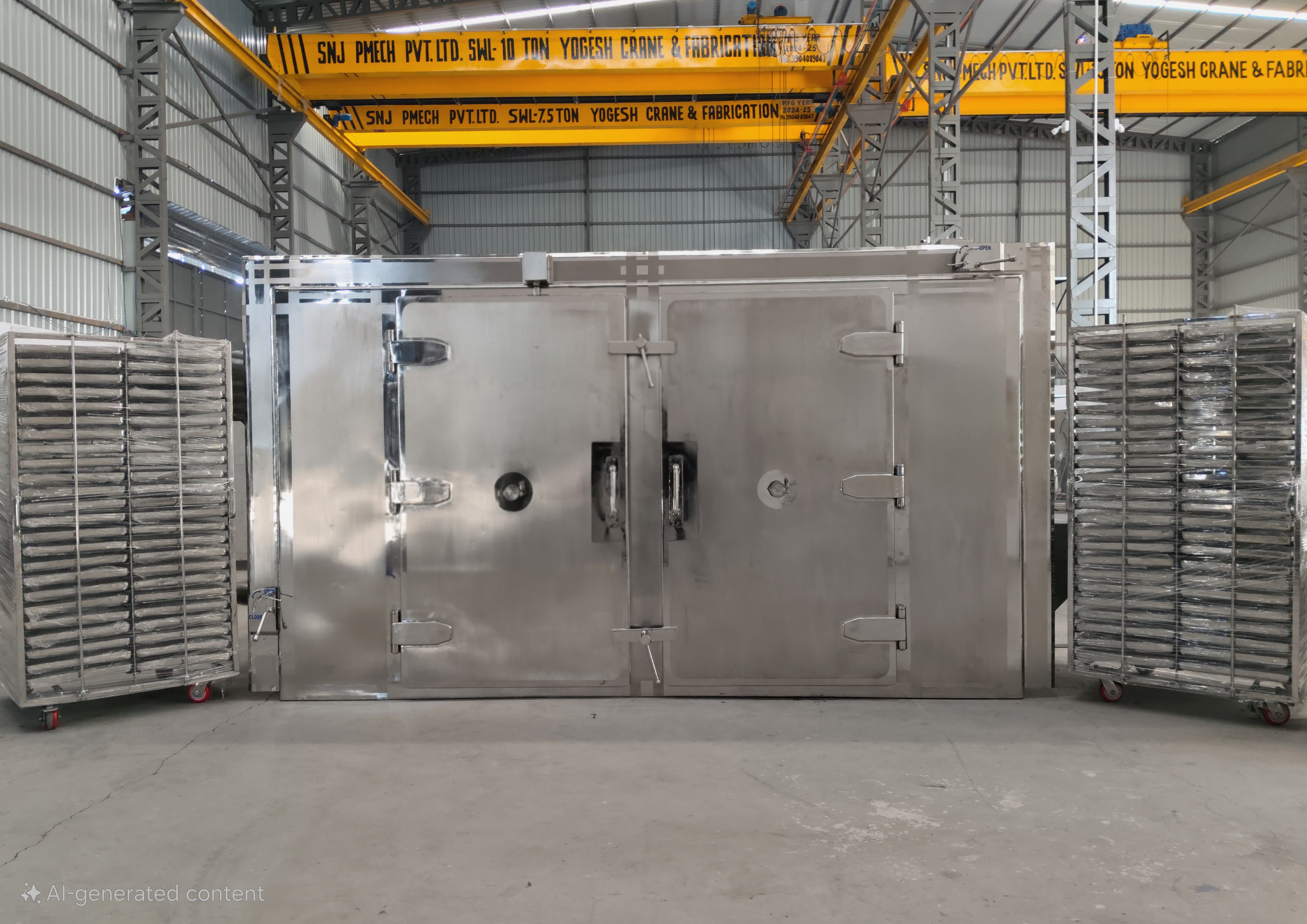

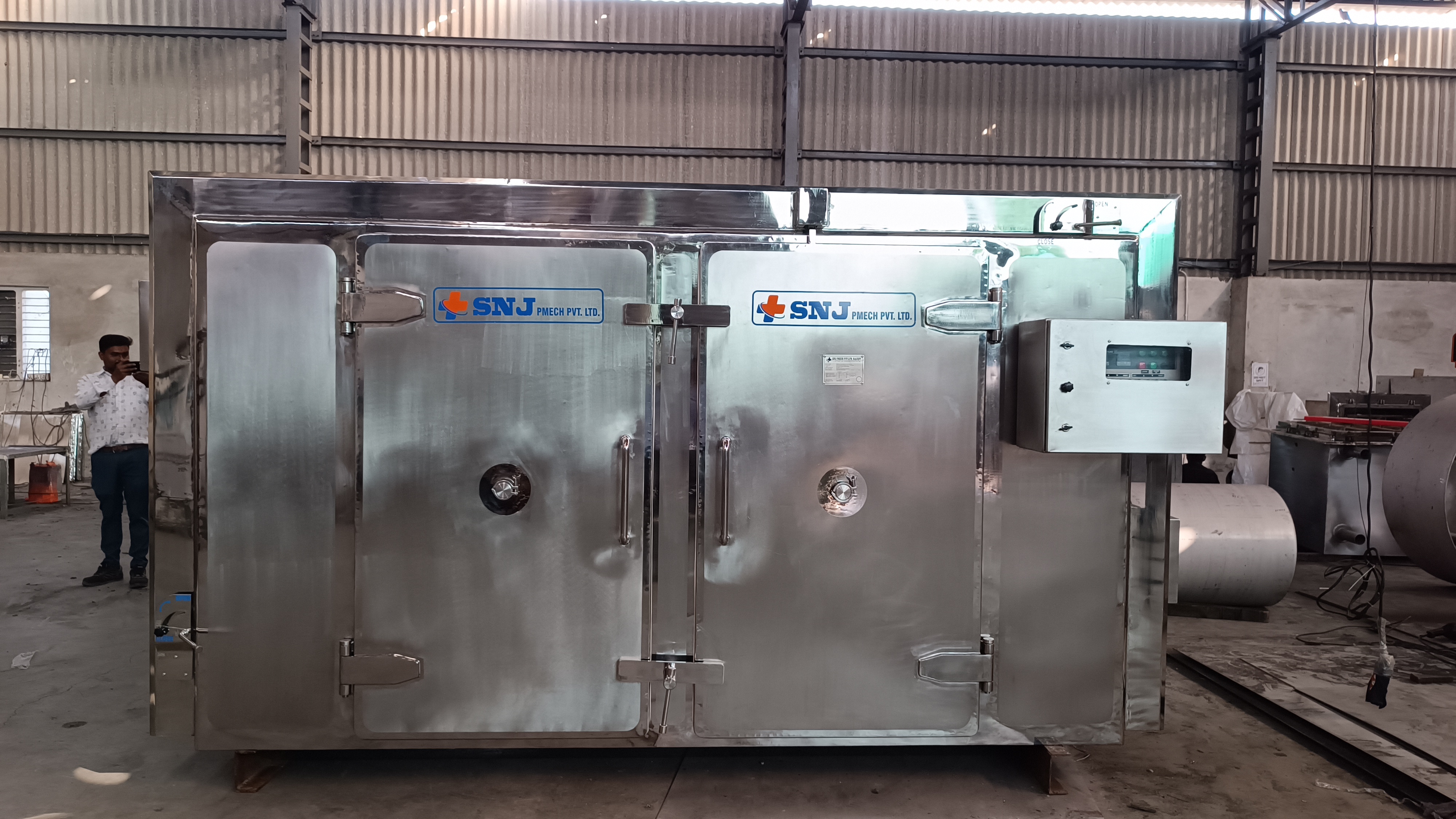

PMECH Designs and Manufactures air tray dryer. Air tray dryer is a very precisely built equipment to extract moisture from various materials in pharmaceuticals, chemical & food stuff as well as many more other industries. It is a specially designed chambe
| Air Tray Dryer Specification | ||||||
|---|---|---|---|---|---|---|
| Model No. | ATD-12 | ATD-24 | ATD-48 | ATD-96 | ATD-144 | ATD-192 |
| No. Of Trays | 12 | 24 | 48 | 96 | 144 | 192 |
| Tray Volume in Ltr. | 120 | 240 | 480 | 960 | 1440 | 1920 |
| Tray Size L × W × H in mm | 800 × 400 × 32 | |||||
| No. of Door | 1 | 1 | 2 | 2 | 2 | 4 |
| No. of Trolley | Fixed Rack | Fixed Rack | 1 | 2 | 2 | 4 |
| Trolley Dimension | Fixed Racks | Fixed Racks | 840 × 960 × 1780 | 840 × 960 × 1780 | 840 × 960 × 1580 | 840 × 960 × 1780 |
| Overall Dimensions (Approx.) in mm | 1500 × 1000 × 1200 | 1500 × 1000 × 1500 | 1850 × 1025 × 1950 | 3400 × 1025 × 1950 | 3400 × 1850 × 1650 | 3400 × 1850 × 1950 |
| Blower Motor Capacity | 0.25 HP | 0.5 HP | 1.0 HP | 1.0 HP × 2 Nos | 1.0 HP × 2 Nos | 1.0 HP × 4 Nos |
| No. of Blowers | One | One | One | Two | Two | Four |
| Electrical Heating Load for 100°C / 200°C / 300°C | 3kw / 6kw / 9kw | 6kw / 9kw / 12kw | 9kw / 15kw / 18kw | 15kw / 21kw / 27kw | 36kw / 42kw / 48kw | 36kw / 42kw / 48kw |
| Steam Heater No. of coils | 2 | |||||
| INSULATION IN MM 100°C / 200°C / 300°C | 75 / 100 / 150 | |||||
